Toneable Flat Drop Cable preconnectorized with OptiTap Hardened connector

Toneable Flat Drop Cable assemblies are preconnectorized with OptiTap hardened connector, it is generally used outside integrally with hardened OptiTap adapters in the MST box or enclosure, it could be OptiTap SC/APC to stub end, or OptiTap SC/APC to regular SC/APC end with armored branch.This drop assemblies have excellent environment adaptability.

Description
Inquiry

Production Brief Introduction:

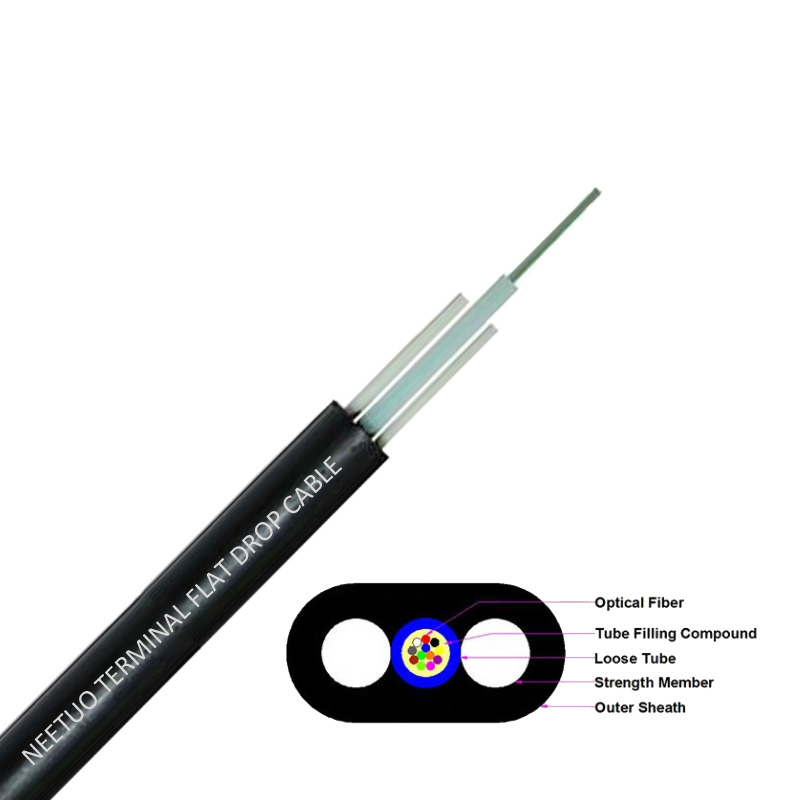

The Flat Drop Cable as bellow:

Our MST box used integrally with the drop cable OptiTap assemblies:

Connector

	Insertion Lose/dB typical	Reflectance Lose/dB typical
OptiTap End	＜0.3dB	＞60
Regular SC/APC	＜0.3dB	＞60

Specification of Fiber G657A1:

Items	Content	Value
Attenuation Coefficient	@1310nm	≤0.36dB/km
Attenuation Coefficient	@1550nm	≤0.21dB/km
Mode field diameter (MFD)	@1310nm	8.6±0.4μm
Mode field diameter (MFD)	@1550nm	9.6±0.4μm
Cable cutoff wavelength λcc(nm)	≤1260nm
Micro bending lose(1 turn,7.5mm radius)	@1550nm	≤0.5dB
Micro bending lose(1 turn,7.5mm radius)	@1625nm	≤1.0dB
Geometrical characteristics
Cladding diameter	125±0.7μm
Cladding non-circularity	≤1%
Core concentricity error	≤0.5μm
Fiber diameter with coating (uncolored)	245±7μm
Cladding/coating concentricity error	≤12.0μm
Proof stress level	≥100kpsi

*G652D,G657A2 are available upon requirement

Specification of Cable:

Fiber Count	Copper Wire	NEETUO Part#	Diameter	Cable weight	Tensile Loading /N		Crush Resistance N/100m		Bending Radius
Fiber Count	Copper Wire	NEETUO Part#	mm	Kg/km	Long term	Short term	Long term	Short Term	Bending Radius
1	/	NT-OptiFlat-03-SCAPC-M	4.5*8.1mm±0.2	30	350	800	300	1000	20D
2	24AWG	NT-OptiFlat-13-SCAPC-M	4.5*9.8mm±0.2	30	350	800	300	1000	20D
