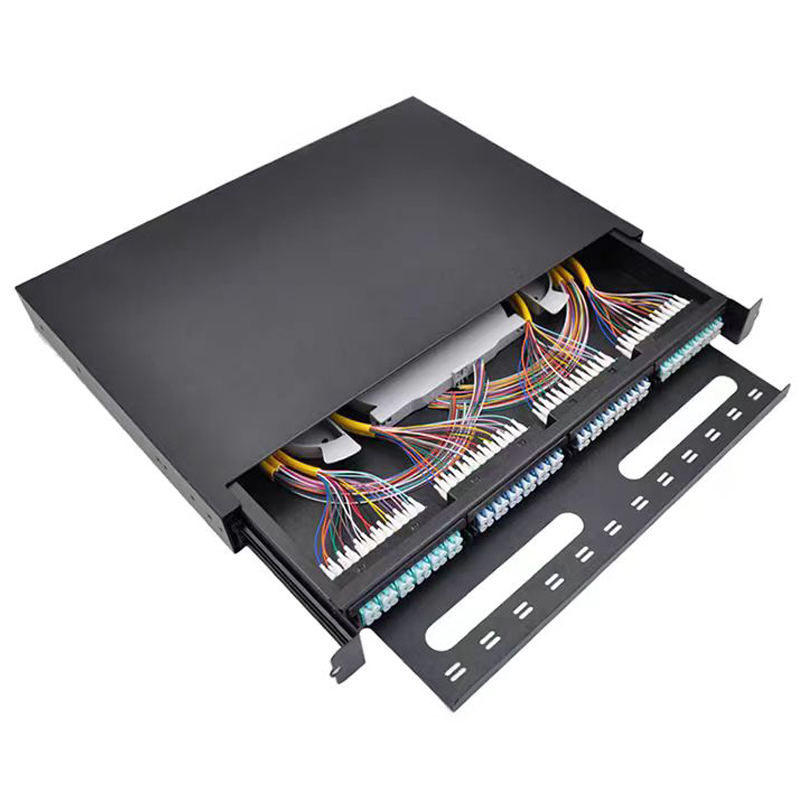

1U Drawer Type High density Patch Panel fully equipped 96C LC Single Mode

Description
Inquiry

Product Brief Introduction:

The patch panel in drawer style is designed to use in 19” rack in data center, its 1.2mm cold steel plate make it be durable, its drawer design make it be fast and smooth to use. Modular optical fiber interface make it be compatible with 24C to 144C,the ports could be adjusted to be compatible with various adapters,SC,LC,FC,ST.

Vabriants: pigtails could be multimode OM1,OM2,OM3,OM4, port adatpers could be LC,SC,SC,ST,FC, it could be compatible with MPO module.

Part#	Adapter	Module Count	Port Count per Module	Bundled Pigtails	Count per bundle	Pigtail fiber type
NT-HDPP01-LC-144OS2	144 SM LC	18	8	12pcs	12C	G657A1
NT-HDPP01-LC-96OS2	96 SM LC	6	24	8pcs	12C	G657A1
NT-HDPP01-LC-72OS2	72 SM LC	3	24	6pcs	12	G657A1
NT-HDPP01-LC-48OS2	48 SM LC	4	12	4pcs	12	G657A1
NT-HDPP01-LC-24OS2	24 SM LC	4	6	2pcs	12	G657A1
NT-HDPP01-LC-24OS2	12 SM LC	1	12	1pc	12	G657A1

Height:1U; Size: 430mm407mm; Weigt: 4.6kg; Packing size: 480400*50 mm
