Toneable Flat Drop Cable with 1-12F Bend Insentive Optical Fiber G657A1

Toneable Flat Drop Cable with 1-12F Bend Insentive Optical Fiber G657A1,dielectric.

Production Brief Introduction:

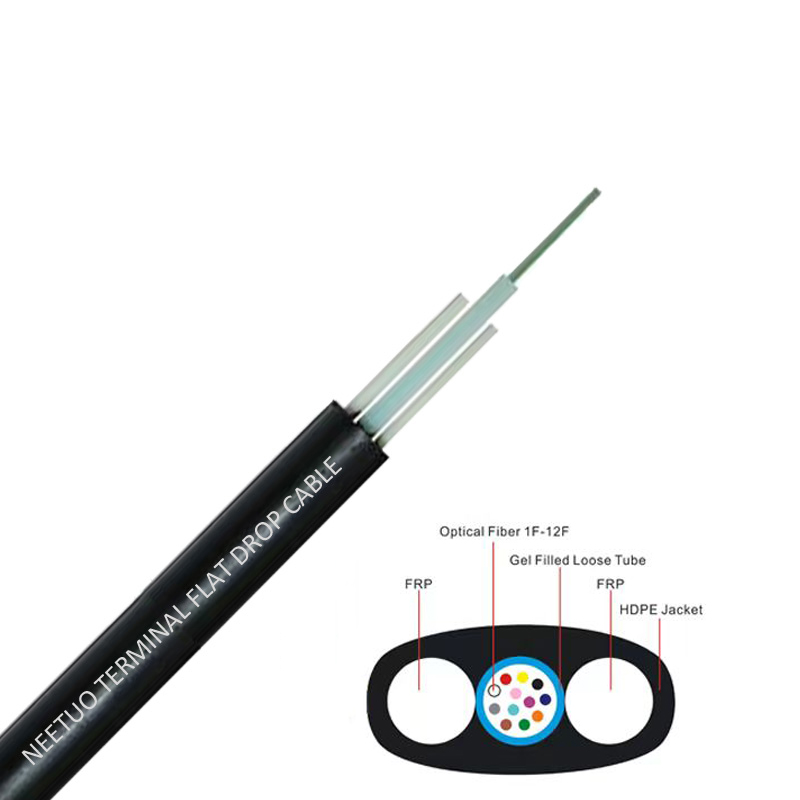

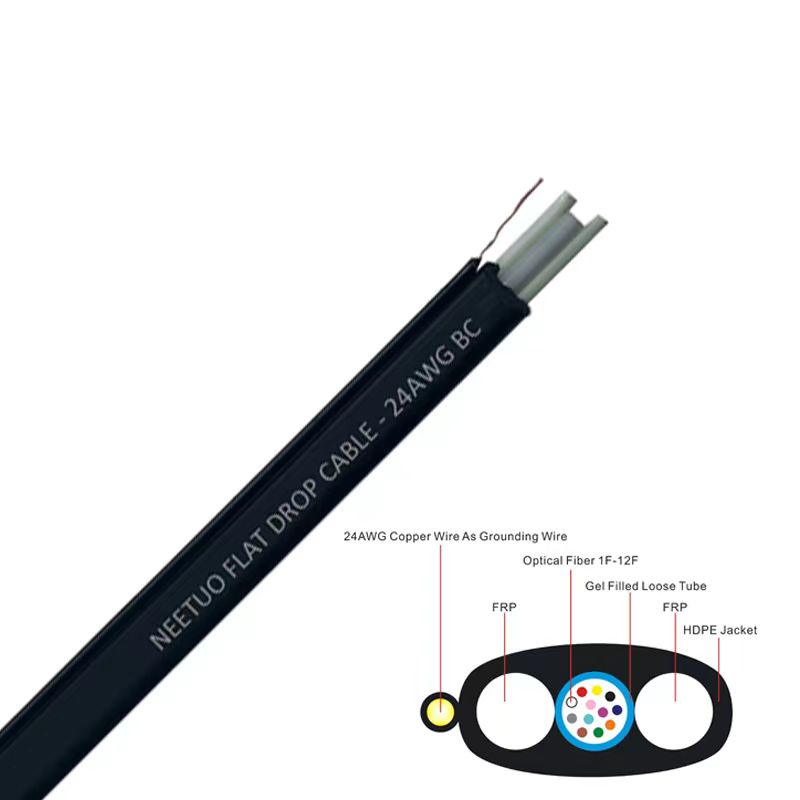

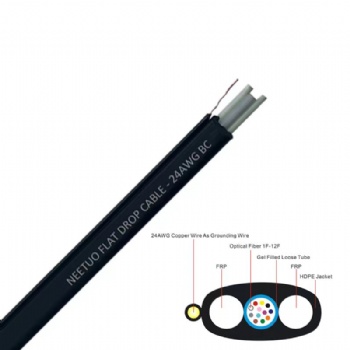

NEETUO produces Dielectric Flat Drop Cable which is widely used in FTTH system,especially together with NEETUO MST box,Hardened Connectors, other terminal box, and other optical fiber deployment projects. It adopt gel filled loose tube in center with 1F-12F  bend insentive optical fiber G657A1, two parrel FRP as reinforcement elements are put alongside the tube to provide tensile strength and protect the optical fiber. The cable is with UV-resistant HDPE, The appearance of this cable is smooth and neat. 24AWG copper wire as grounding wire could be added upon requirement.



Flat Drop Cable assemblies preconnectorized with hardened connectors:




OptiTap Hardened Connector

Huawei Type Hardened Connector

MST Box with OptiTap Hardened Adapter


Main Features:

-    Standard fiber count: 1~12 cores

-    Gel/Dry/Buffer type

-    Easy installation

-    Excellent mechanical & environmental Characteristics

-    Available in pre-connectorized assemblies

-    Dielectic structure



Specification of Cable:

Fiber Count

Copper Wire

NEETUO Part#

Diameter

Cable weight

Tensile Loading /N

Crush Resistance    N/100m

Bending Radius

mm

Kg/km

Long term

Short term

Long term

Short Term

1

/

NT-DPGYFXBY03-01

4.5*8.1mm±0.2

30

350

800

300

1000

20D

2

/

NT-DPGYFXBY03-02

4.5*8.1mm±0.2

30

350

800

300

1000

20D

4

/

NT-DPGYFXBY03-04

4.5*8.1mm±0.2

30

350

800

300

1000

20D

6

/

NT-DPGYFXBY03-06

4.5*8.1mm±0.2

30

350

800

300

1000

20D

8

/

NT-DPGYFXBY03-08

4.5*8.1mm±0.2

30

350

800

300

1000

20D

12

/

NT-DPGYFXBY03-12

4.5*8.1mm±0.2

30

350

800

300

1000

20D

1

24AWG

NT-DPGYFXBY13-01

4.5*9.8mm±0.2

40

350

800

300

1000

20D

2

24AWG

NT-DPGYFXBY13-02

4.5*9.8mm±0.2

40

350

800

300

1000

20D

4

24AWG

NT-DPGYFXBY13-04

4.5*9.8mm±0.2

40

350

800

300

1000

20D

6

24AWG

NT-DPGYFXBY13-06

4.5*9.8mm±0.2

40

350

800

300

1000

20D

8

24AWG

NT-DPGYFXBY13-08

4.5*9.8mm±0.2

40

350

800

300

1000

20D

12

24AWG

NT-DPGYFXBY13-12

4.5*9.8mm±0.2

40

350

800

300

1000

20D

Operating:-40℃~+60℃

Store/Transport :-50℃~+70℃

Installation -20℃~+60℃



Applications

-    FTTX networking project;

-    Direct Burial/Duct/Aerial application;

-    Indoor & Outdoor application;

-    Subscriber network system & Long haul communication system;
