Description:

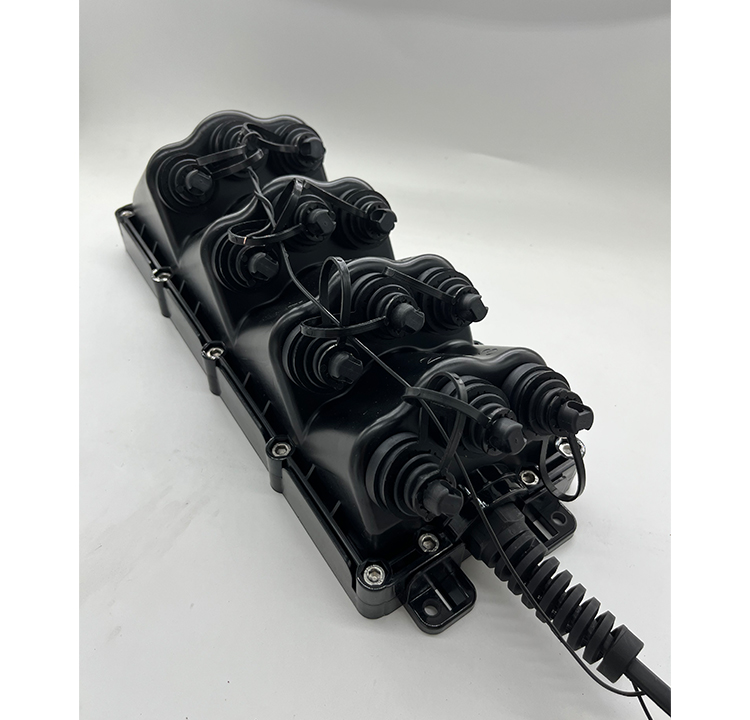

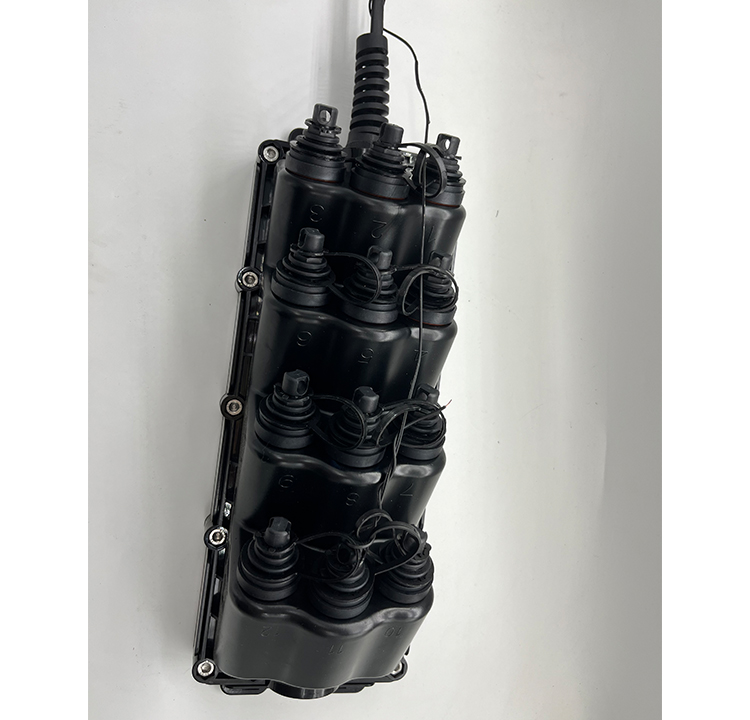

Multiport Service Terminal (MST) box is used for access points of the FTTx-ODN Network. It is a product with all inlet and outlet cables pre-conncted, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters which are OptiTap or Fastconnect. The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency.

Features:

l  IP68 waterproof protection

l  2,4,6,8,12 ports are available

l  Plug and play adapters ports, fully compatible with OptiTap and H-Connector

l  Wall mounting, aerial installation or holding pole installation

l  Low Insertion Loss & High Reflection

l  Reliability and Long Service Time

l  Easily add/install jumper cables for a future expansion

l  Cost effective: save 40% operating time

l  Provides bend protection for installation and long term use

Application

l  Multi-purpose Outdoor;

l  For connection between distribution box and RRH(RRU);

l  Deployment in Remote Radio Head cell tower applications.
