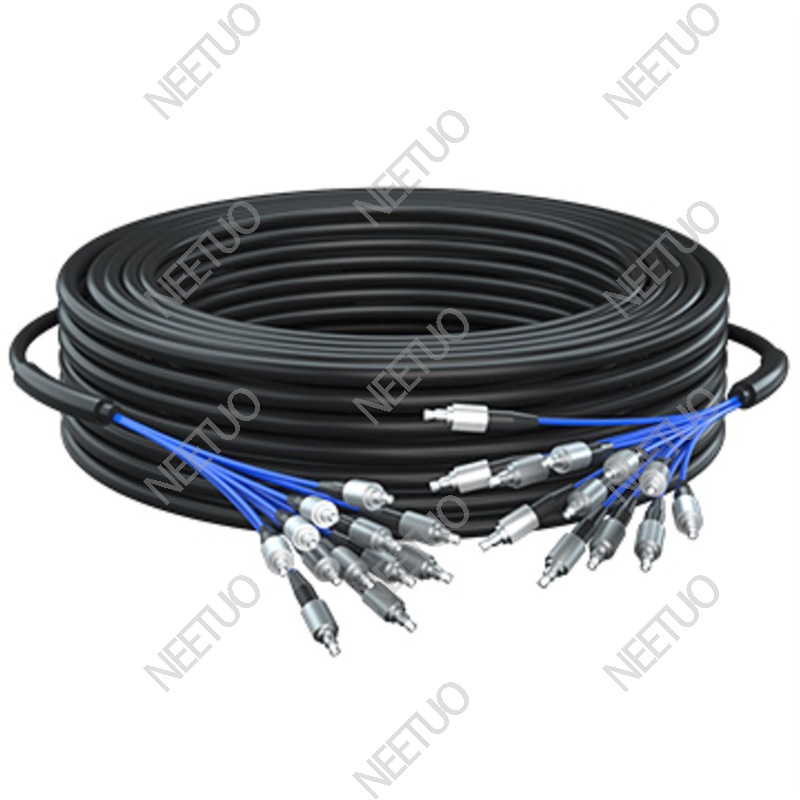

Outdoor Steel tape armored patch cord 12F FC-FC

Spiral steel tube armored patch cord 12F ST-ST

Description
Inquiry

This type of outdoor armored optical fiber patch cord is GYXTW cable assembled with SC/LC/ST/FC connectors at both ends,it can be used as either aerial cable or duct cable, this can reduce the construction cost and greatly improve the convenience of network maintenance.

Connector Types available: SC,LC,FC,ST

OD:7.5mm

Fiber: 9/125um G652D

Application: aerial, duct

Operation temperature: -40^oC – 70^oC

Tensile Strength: Long term: 800N, short term: 2500N

Bending Radius: Installation :20times of OD, working: 10times of OD.

Specifications of ends:

Type	Single Mode(UPC)		Single Mode(APC)
Insertion Loss	≦0.3dB		≦0.25dB
Return Loss	≧50dB		≧60dB
Test Wavelength	1310/1550nm
Connector Types	SC,LC,FC,ST
Ferrule Material	Zirconia Ceramic
Ferrule Concentricity	<0.5μ or <1μ			<1μ
Cable Diameter	3.0mm,2.0mm or 0.9mm for pigtials
Length	Customized
Radius of Curvature	Ф2.5mm	UPC		10-25mm
		APC		5-15mm
	Ф1.25mm	UPC		7-25mm
		APC		5-12mm
Apex Offset	≤50μm
Spherical Fiber Height	Ф2.5mm APC&UPC,Ф1.25mm UPC			-100~+50nm
	Ф1.25mm APC			-100~+10nm
Durability of Plug	>1000Times
Tensile Strength	100N 10Minutes
Repeatability	IL Change≤0.1dB RL Change<5dB
Work Temperature	-40℃~+80℃
Storage Temperature	-40℃~+80℃
