0.9mm optical fiber pigtails LC/UPC SM 6557A1 white
Description of NEETUO Pigtails
This pigtail is a 0.9mm tight buffer fiber optic cable terminated with a NEETUO pre-installed connector on one end, leaving the other end unterminated. It is utilized to terminate fiber optic cables via fusion or mechanical splicing in fiber optic management equipment like ODF, fiber terminal box and distribution box.

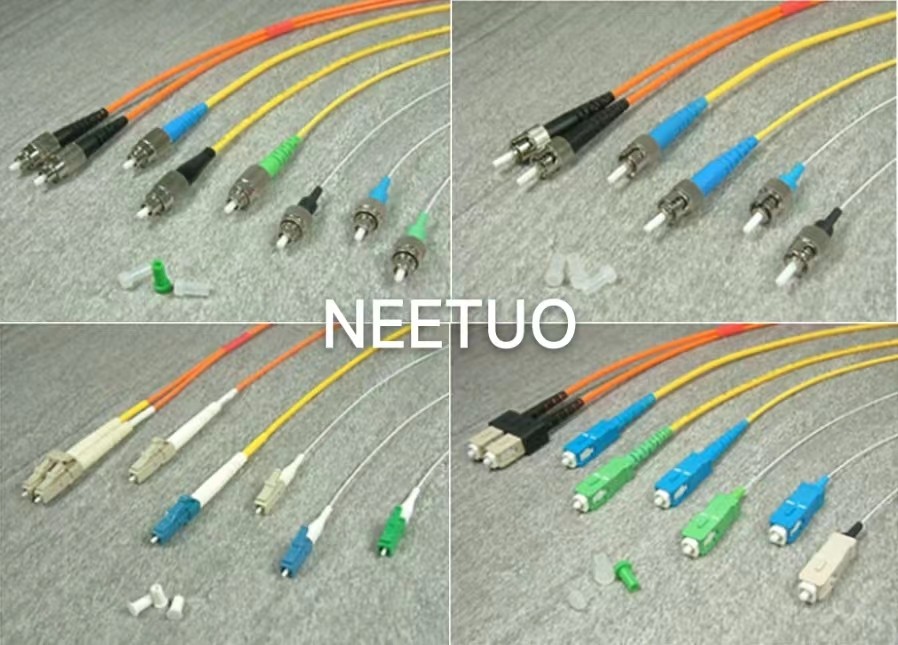

The pigtails and patch cords with other connectors are also available:
2, Specification of 0.9mm pigtails:
Type | Single Mode(UPC) | Single Mode(APC) | ||
Insertion Loss | ≦0.3dB | ≦0.25dB | ||
Return Loss | ≧50dB | ≧60dB | ||
Test Wavelength | 1310/1550nm | |||
Connector Types | SC,LC,FC,ST | |||
Ferrule Material | Zirconia Ceramic | |||
Ferrule Concentricity | <0.5μ or <1μ | <1μ | ||
Jacket Materials | PVC | |||
Fiber Type | 9/125-G652 | |||
Fiber Brand | YOFC, Zhongtian,etc | |||
Cable Diameter | 3.0mm,2.0mm or 0.9mm for pigtials | |||
Length | Customized | |||
Radius of Curvature |
Ф2.5mm | UPC | 10-25mm | |
APC | 5-15mm | |||
Ф1.25mm | UPC | 7-25mm | ||
APC | 5-12mm | |||
Apex Offset | ≤50μm | |||
Spherical Fiber Height | Ф2.5mm APC&UPC,Ф1.25mm UPC | -100~+50nm | ||
Ф1.25mm APC | -100~+10nm | |||
Durability of Plug | >1000Times | |||
Tensile Strength | 100N 10Minutes | |||
Repeatability | IL Change≤0.1dB RL Change<5dB | |||
Work Temperature | -40℃~+80℃ | |||
Storage Temperature | -40℃~+80℃ |
