1C Outdoor Drop Cable Patch Cord SC/APC-SC/APC

1C Outdoor Drop Cable Patch Cord SC/APC-SC/APC

Description of fiber optic patch cord

This FTTH prefabricated drop cable is FTTH drop cable GJYXCH capped at both ends with SC/UPC connectors that allow it to be rapidly and conveniently connected to CATV, The cable can be used indoor or outdoor to access building.

This patch cord is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling. It is specially good to use for fiber to the home last mile solution,

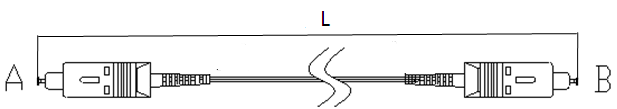

SCAPC-SCAPC - 副本.png


Options of Connectors:





Feasure of fiber optic patch cord

1) Low insertion loss high return loss

2)Excellent mechanical endurance

3)High credibility and stability

4)Good in repeatability and exchangeability



Parameters

Single mode (9/125)
Max Insertion Loss: 0.3dB
Minimum Return Loss: PC: 50dB APC: 60dB

Multi mode(50/125, 62.5/125, OM3)
Max Insertion Loss: 0.5dB

Minimum Return Loss: 25dB

Operating temperature: -40 to +75

Storage temperature: -40° C ~ +80° C



Order Information
Fiber Type: SM 9/125um, MM 50/125um, MM 62.5/125um, 10G OM3(50/125um)
Polishing: PC, UPC, APC.
Length: 1m, 2m,.... 300m



Specification of different types of connectors:

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9



Application of fiber optic patch cord

1) Fiber optic communication networks

2) Optical access network

3) Data processing networks

4)Premise  installations
