Immobility Clamp for Pole

Straight Clamp is used on tangent tower while hoop is used to fix Helical Dead-end and Helical Suspension Set on the pole to provide suspension point on ADSS cable.

Description
Inquiry

Product Description:

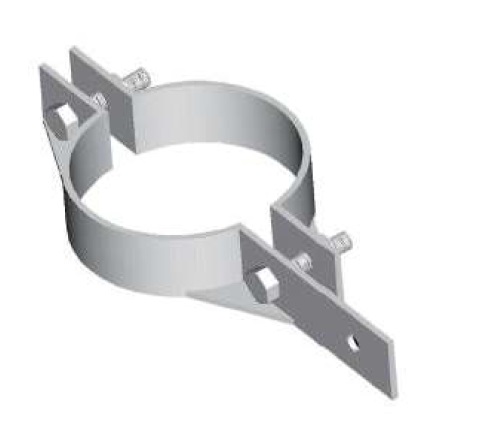

Immobility Clamp is used for fixing or connecting other hardware fittings onto the tower/pole.It is divided into Immobility Clamp for tower and Immobility Clamp for Pole.Immobility Clamp for tower uses metal clamp while Immobility Clamp for Pole uses hoop.

Tension Clamp is used for angle tower or terminal tower to provide suspension point for ADSS cable.Straight Clamp is used on tangent tower while hoop is used to fix Helical Dead-end and Helical Suspension Set on the pole to provide suspension point on ADSS cable.

Product Specification:

Name	Model	Dimension of main stand for cable fixing	Material	Devastating Load(KN)
Hoop	TGX 125 070	101-125	Galvanized Steel	70
	TGX 150 070	126-150		70
	TGX 175 070	151-175		70
	TGX 200 070	176-200		70
	TGX 225 070	201-225		70
	TGX 250 070	226-250		70
	TGX 275 070	251-275		70
	TGX 300 070	276-300		70
	TGX 325 070	301-325		70
	TGX 350 070	326-350		70
	TGX 375 070	351-375		70
	TGX 400 070	376-400		70
