Suspension Clamp for ADSS

It is composed of aluminum alloy and aluminum-clad steel helical rods ,Aluminum housing and other link fittings.

Description
Inquiry

Product Description:

If Suspension Set for ADSS is adopted double layers helical rods designing, it is generally used for 300M-400M span length ADSS installation, which clamp break strength is less than 70KN, grip strength is less than 15% -20% RTS of the cable.

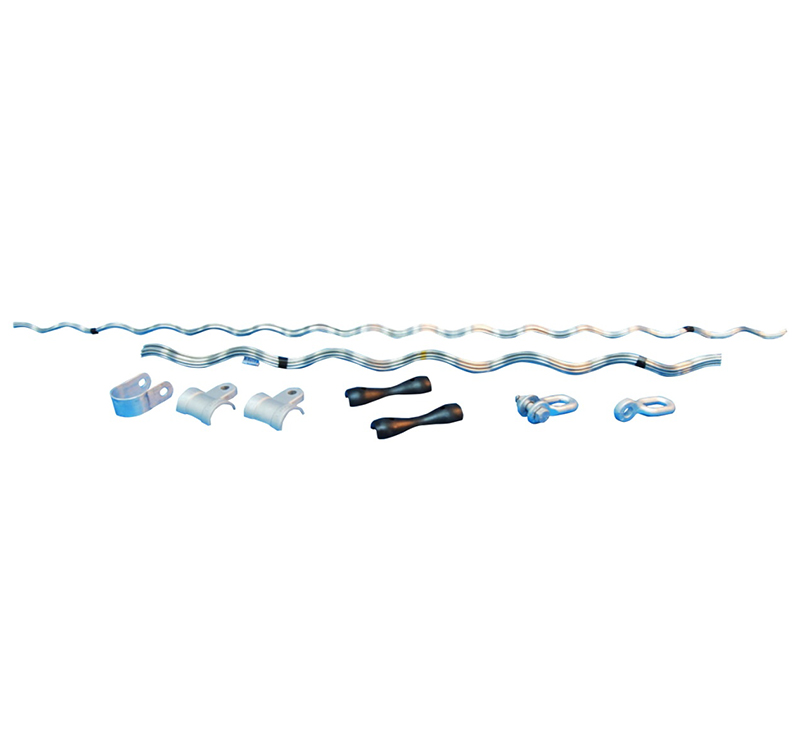

It is composed of aluminum alloy and aluminum-clad steel helical rods ,Aluminum housing and other link fittings.

Production Specification:

Type	Available Dia of Cable(mm)		Available Span(M)
	Min.(mm)	Max.(mm)
AXY-1010 300	9.0	10.1	200/300
AXY-1110 300	10.2	11.1	200/300
AXY-1210 300	11.2	12.1	200/300
AXY-1310 300	12.2	13.1	200/300
AXY-1410 300	13.2	14.1	200/300
AXY-1510 300	14.2	15.1	200/300
AXY-1610 300	15.2	16.1	200/300
AXY-1010 400	9.0	10.1	300/400
AXY-1110 400	10.2	11.1	300/400
AXY-1210 400	11.2	12.1	300/400
AXY-1310 400	12.2	13.1	300/400
AXY-1410 400	13.2	14.1	300/400
AXY-1510 400	14.2	15.1	300/400
AXY-1610 400	15.2	16.1	300/400
AXY-1210 500	11.2	12.1	400/500
AXY-1310 500	12.2	13.1	400/500
AXY-1410 500	13.2	14.1	400/500
AXY-1510 500	14.2	15.1	400/500
AXY-1610 500	15.2	16.1	400/500
AXY-1210 600	11.2	12.1	500/600
AXY-1310 600	12.2	13.1	500/600
AXY-1410 600	13.2	14.1	500/600
AXY-1510 600	14.2	15.1	500/600
AXY-1610 600	15.2	16.1	500/600
AXY-1410 800	13.2	14.1	700/800
AXY-1510 800	14.2	15.1	700/800
AXY-1610 800	15.2	16.1	700/800
AXY-1710 800	16.2	17.1	700/800
AXY-1810 800	17.2	18.1	700/800
AXY-1610 1000	15.2	16.1	900/1000
AXY-1710 1000	16.2	17.1	900/1000
AXY-1810 1000	17.2	18.1	900/1000
AXY-1910 1000	18.2	19.1	900/1000
