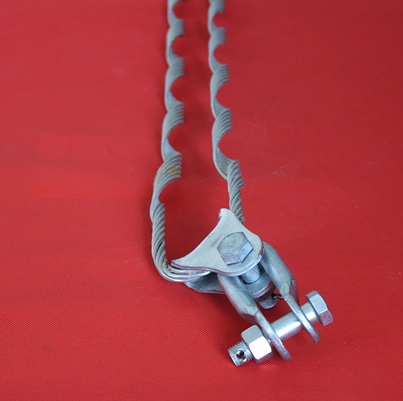

Tension Clamp Set for ADSS Cable

It is mainly used for ADSS installation between strain tower/pole,corner tower/pole and terminal tower/pole which span length is more than 200 with RTS of the cable is larger than 15KN

Description
Inquiry

Product Description:

Medium/Long Span ADSS Tension Set is composed of helical Dead-end and structural reinforcing rods,the materials are aluminum-clad steel or galvanized steel,it is mainly used for ADSS installation between strain tower/pole,corner tower/pole and terminal tower/pole which span length is more than 200 with RTS of the cable is larger than 15KN,

Medium Span ADSS Tension set is used for installation span length between 200-400M,Long Span ADSS Tension set is used for installation span length more than 400M.

1. U-Shackle 2, Eye Chain Link 3, Thimble Clevis

2. Helical Dead-end 5, Structural Reinforcing Rods

Product Specification:

Type	Available Dia of Cable (mm)		Span Length
Type	Min(mm)	Max(mm)	Span Length
ANJ 0940 020	8.6	9.4	200/300
ANJ 1010 020	9.5	10.1	200/300
ANJ 1070 020	10.2	10.7	200/300
ANJ 1140 020	10.8	11.4	200/300
ANJ 1220 020	11.5	12.2	200/300
ANJ 1290 020	12.3	12.9	200/300
ANJ 1370 020	13	13.7	200/300
ANJ 1140 030	10.8	11.4	300/400
ANJ 1220 030	11.5	12.2	300/400
ANJ 1290 030	12.3	12.9	300/400
ANY 1370 030	13	13.7	300/400
ANY 1460 030	13.8	14.6	300/400
ANY 1550 030	14.7	15.5	300/400
ANY 1220 040	11.5	12.2	400/500
ANY 1290 040	12.3	12.9	400/500
ANY 1370 040	13	13.7	400/500
ANY 1460 040	13.8	14.6	400/500
ANY 1550 040	14.7	15.5	400/500
ANY 1650 040	15.6	16.5	400/500
ANY 1370 050	13	13.7	500/600/700
ANY 1460 050	13.8	14.6	500/600/700
ANY 1550 050	14.7	15.5	500/600/700
ANY 1650 050	15.6	16.5	500/600/700
ANY 1370 060	13	13.7	600/700/800
ANY 1460 060	13.8	14.6	600/700/800
ANY 1550 060	14.7	15.5	600/700/800
ANY 1650 060	15.6	16.5	600/700/800
ANY 1750 070	16.6	17.5	700/800/900
ANY 1870 070	17.6	18.7	700/800/900
ANY 1550 080	14.7	15.5	800/900/1000
ANY 1650 080	15.6	16.5	800/900/1000
ANY 1750 080	16.6	17.5	800/900/1000
ANY 1870 080	17.6	18.7	800/900/1000
